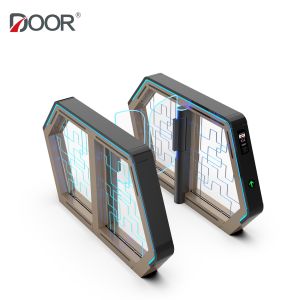

Waist Height RS485 SUS304 Barcode Scanner Turnstile 100w

Name: Waist Height RS485 SUS304 Barcode Scanner Turnstile 100w
Brand: DOOR
Price: 1 USD

Wholesale Waist Height RS485 SUS304 Barcode Scanner Turnstile 100w from china suppliers

Brand Name : DOOR

Model Number : DR.TD.6627

Certification : CE / IS09001

Place of Origin : China

MOQ : 1 lane

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability : 2500 sets per month

Delivery Time : 5-7 working days

Packaging Details : plywood cases

Motor : Servo motor MBCF 8million times

Size : L1656×W150×H1000mm

Communication interface : RS485,dry contact

Product name : Waist High fast speed lane gate/swing barrier turnstile

Power supply : AC220V/110V 50-60Hz

Warranty : 2 years

Passage width : 600~900mm

Unlock time : 0.2s

Contact Now

304 Stainless Steel Polished Turnstile Barcode Scanner Serco DC Motor Tailgating Sensitivity

Product Description:

It has clear, bi-directional motorized barrier panels and a stylish, architectural design that enhances any access control installation.

In controlled passage mode, upon receipt of a valid card signal from an access control system, the motorized barriers of the turnstile open away from the user, and integrated sensors allow a single user to pass through the turnstile in the requested direction. If an unauthorized user attempts to tailgate on the entry, the unit will recognize the illegal passage, a violation alarm will sound and red notification lights will flash.

Device Parameter:

Passage Width	standard 550mm, max 1100mm
Passing Speed	30-50personal/min
Opening Speed	Adjustable, fastest 0.2s
Working Temperature	-20℃-+80℃
Mean Cycles Between Failure	>8 million times
IP Rating	IP42
Material	SUS304 brushed stainless steel,
	top cover 2.0mm, whole body 1.5mm, 10mm Acrylic Arm
Size	L1656×W150×H1000mmm
Voltage	AC110V/AC220V±10% 50-80Hz
Operating Power	Single Core 100w, dual core 200w
Driving Motor	Servo motor
Method of Position	Use the encoder to make sure the swing gate position
Communication Interface	RS485, TCP/IP interface
Input Signal	dry contact signal or +12V level signal or DC 12V
	pulse signal with width of more than 100ms, driving current >10mA
Number of Sensor	8 groups

Application:

FAQ:

Q1: Do you have English version system?

A: Yes, we can provide English version system. Also you can use your own system as well.

Q2: Does the equipement include control board?

A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.

Q3: Can we connect your access control system with our system?

A: Yes, we provide SDK and Software development service with connection port.

Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.

Q5: What is your company’s strength?

A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.

Q6: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q7. How about the lead time?

Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
